EST_DMatrix Class Reference

#include <include/EST_DMatrix.h>

Inheritance diagram for EST_DMatrix:

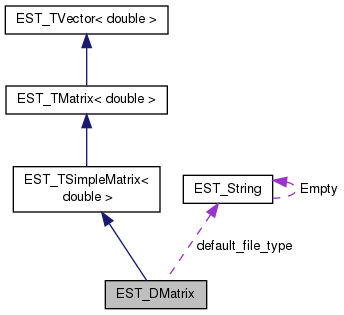

Collaboration diagram for EST_DMatrix:

Public Member Functions

 EST_DMatrix (int m, int n)
 size constructor

 EST_DMatrix (const EST_DMatrix &a)
 copy constructor

 EST_DMatrix (const EST_DMatrix &a, int b)
 CHECK - what does this do???

 EST_DMatrix ()
 default constructor

EST_write_status save (const EST_String &filename, const EST_String &type=EST_DMatrix::default_file_type)
 Save in file (ascii or binary)

EST_read_status load (const EST_String &filename)
 Load from file (ascii or binary as defined in file)

EST_write_status est_save (const EST_String &filename, const EST_String &type)
 Save in file in est format.

EST_read_status est_load (const EST_String &filename)
 Load from file in est format (binary/ascii defined in file itself)

void copyin (double **x, int rows, int cols)
 Copy 2-d array { x} of size { rows x cols} into matrix.

EST_DMatrixoperator+= (const EST_DMatrix &a)
 Add elements of 2 same sized matrices.

EST_DMatrixoperator-= (const EST_DMatrix &a)
 Subtract elements of 2 same sized matrices.

EST_DMatrixoperator*= (const double f)
 elementwise multiply by scalar

EST_DMatrixoperator/= (const double f)
 elementwise divide by scalar

- Public Member Functions inherited from EST_TSimpleMatrix< double >
 EST_TSimpleMatrix (void)
 default constructor

 EST_TSimpleMatrix (int m, int n)
 size constructor

 EST_TSimpleMatrix (const EST_TSimpleMatrix< double > &m)
 copy constructor

void copy (const EST_TSimpleMatrix< double > &a)
 copy one matrix into another

void resize (int rows, int cols, int set=1)
 resize matrix

EST_TSimpleMatrix< double > & operator= (const EST_TSimpleMatrix< double > &s)
 assignment operator

- Public Member Functions inherited from EST_TMatrix< double >
 EST_TMatrix ()
 default constructor

 EST_TMatrix (const EST_TMatrix< double > &m)
 copy constructor

 EST_TMatrix (int rows, int cols)
 "size" constructor

 EST_TMatrix (int rows, int cols, double *memory, int offset=0, int free_when_destroyed=0)
 construct from memory supplied by caller

 ~EST_TMatrix ()
 EST_TMatrix.

bool have_rows_before (int n) const

bool have_columns_before (int n) const

void resize (int rows, int cols, int set=1)

void fill (const double &v)
 fill matrix with value v

void fill ()

EST_TMatrixoperator= (const EST_TMatrix &s)
 assignment operator

EST_TMatrixadd_rows (const EST_TMatrix &s)
 The two versions of what might have been operator +=.

EST_TMatrixadd_columns (const EST_TMatrix &s)

int num_rows () const
 return number of rows

int num_columns () const
 return number of columns

INLINE const double & a_no_check (int row, int col) const
 const access with no bounds check, care recommend

INLINE double & a_no_check (int row, int col)
 access with no bounds check, care recommend

INLINE const double & a_no_check_1 (int row, int col) const

INLINE double & a_no_check_1 (int row, int col)

const double & a_check (int row, int col) const
 const element access function

double & a_check (int row, int col)
 non-const element access function

const double & a (int row, int col) const

double & a (int row, int col)

const double & operator() (int row, int col) const
 const element access operator

double & operator() (int row, int col)
 non-const element access operator

void row (EST_TVector< double > &rv, int r, int start_c=0, int len=-1)
 Make the vector { rv} a window onto row { r}.

void column (EST_TVector< double > &cv, int c, int start_r=0, int len=-1)
 Make the vector { cv} a window onto column { c}.

void sub_matrix (EST_TMatrix< double > &sm, int r=0, int numr=EST_ALL, int c=0, int numc=EST_ALL)
 Make the matrix { sm} a window into this matrix.

void copy_row (int r, double *buf, int offset=0, int num=-1) const

void copy_row (int r, EST_TVector< double > &t, int offset=0, int num=-1) const

void copy_column (int c, double *buf, int offset=0, int num=-1) const

void copy_column (int c, EST_TVector< double > &t, int offset=0, int num=-1) const

void set_row (int n, const double *buf, int offset=0, int num=-1)

void set_row (int n, const EST_TVector< double > &t, int offset=0, int num=-1)

void set_row (int r, const EST_TMatrix< double > &from, int from_r, int from_offset=0, int offset=0, int num=-1)

void set_column (int n, const double *buf, int offset=0, int num=-1)

void set_column (int n, const EST_TVector< double > &t, int offset=0, int num=-1)

void set_column (int c, const EST_TMatrix< double > &from, int from_c, int from_offset=0, int offset=0, int num=-1)

void set_memory (double *buffer, int offset, int rows, int columns, int free_when_destroyed=0)

EST_read_status load (const class EST_String &filename)
 load Matrix from file - Not currently implemented.

EST_write_status save (const class EST_String &filename) const
 save Matrix to file { filename}

- Public Member Functions inherited from EST_TVector< double >
INLINE unsigned int vcell_pos (unsigned int c, unsigned int cs) const
 The memory access rule, in one place for easy reference.

INLINE unsigned int vcell_pos (unsigned int c) const

INLINE unsigned int vcell_pos_1 (unsigned int c) const

INLINE const double & fast_a_v (int c) const
 quick method for returning (x[n])

INLINE double & fast_a_v (int c)

INLINE const double & fast_a_1 (int c) const

INLINE double & fast_a_1 (int c)

void set_values (const double *data, int step, int start_c, int num_c)
 Get and set values from array.

void get_values (double *data, int step, int start_c, int num_c) const

void copy (const EST_TVector< double > &a)
 private copy function, called from all other copying functions.

void copy_data (const EST_TVector< double > &a)
 just copy data, no resizing, no size check.

void just_resize (int new_cols, double **old_vals)
 resize the memory and reset the bounds, but don't set values.

void default_vals ()
 sets data and length to default values (0 in both cases).

 EST_TVector ()
 default constructor

 EST_TVector (const EST_TVector< double > &v)
 copy constructor

 EST_TVector (int n)
 "size" constructor - make vector of size n.

 EST_TVector (int, double *memory, int offset=0, int free_when_destroyed=0)
 construct from memory supplied by caller

 ~EST_TVector ()
 destructor.

void resize (int n, int set=1)

const double * memory () const

double * memory ()

void set_memory (double *buffer, int offset, int columns, int free_when_destroyed=0)

EST_TVectoroperator= (const EST_TVector &s)
 assignment operator

void fill (const double &v)
 Fill entire array will value <parameter>v</parameter>.

void empty ()
 Fill vector with default value.

int operator== (const EST_TVector &v) const
 is true if vectors are equal size and all elements are equal.

int operator!= (const EST_TVector &v) const
 is true if vectors are not equal size or a single elements isn't equal.

void copy_section (double *dest, int offset=0, int num=-1) const
 Copy data in and out. Subclassed by SimpleVector for speed.

void set_section (const double *src, int offset=0, int num=-1)

void sub_vector (EST_TVector< double > &sv, int start_c=0, int len=-1)
 Create a sub vector.

void integrity () const

INLINE int num_columns () const
 number of items in vector.

INLINE int length () const
 number of items in vector.

INLINE int n () const
 number of items in vector.

INLINE const double & a_no_check (int n) const
 read-only const access operator: without bounds checking

INLINE double & a_no_check (int n)
 read/write non-const access operator: without bounds checking

INLINE const double & a_no_check_1 (int n) const
 read-only const access operator: without bounds checking

INLINE double & a_no_check_1 (int n)
 read/write non-const access operator: without bounds checking

const double & a_check (int n) const
 read-only const access operator: with bounds checking

double & a_check (int n)
 read/write non-const access operator: with bounds checking

const double & a (int n) const

double & a (int n)

const double & operator() (int n) const
 read-only const access operator: return reference to nth member

double & operator[] (int n)
 read/write non const access operator: return reference to nth member


Static Public Attributes

static EST_String default_file_type = "est_ascii"


Friends

EST_DMatrix operator* (const EST_DMatrix &a, const double x)
 Multiply all elements of matrix by { x}.

EST_DVector operator* (const EST_DMatrix &a, const EST_DVector &v)
 Multiply matrix by vector.

EST_DVector operator* (const EST_DVector &v, const EST_DMatrix &a)
 Multiply vector by matrix.

EST_DMatrix operator* (const EST_DMatrix &a, const EST_DMatrix &b)
 Multiply matrix by matrix.


Additional Inherited Members

- Public Attributes inherited from EST_TVector< double >
double * p_memory

unsigned int p_num_columns
 Visible shape.

unsigned int p_offset
 How to access the memory.

unsigned int p_column_step

bool p_sub_matrix

- Protected Member Functions inherited from EST_TSimpleMatrix< double >
void copy_data (const EST_TSimpleMatrix< double > &a)

- Protected Attributes inherited from EST_TMatrix< double >
unsigned int p_num_rows
 Visible shape.

unsigned int p_row_step
 How to access the memory.


Detailed Description

A matrix class for double precision floating point numbers.

EST_DMatrix x should be used instead of double **x wherever possible.

Definition at line 54 of file EST_DMatrix.h.
